Hardwall cleanroom at Biersack Gruppe in Germany
At Biersack Gruppe, high quality and individual customer products are designed and produced. This family business founded in 1948, is a certified system supplier with customers in many different industry sectors such as Aerospace, Medical technology Automotive and mechanical engineering. In order to continue to meet the high quality requirements, some products are cleaned, assembled and packed in a cleanroom environment.
Cleanroom relocation

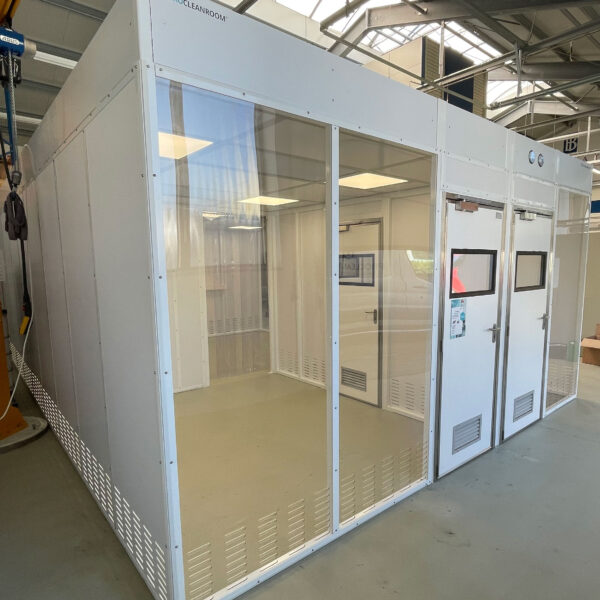

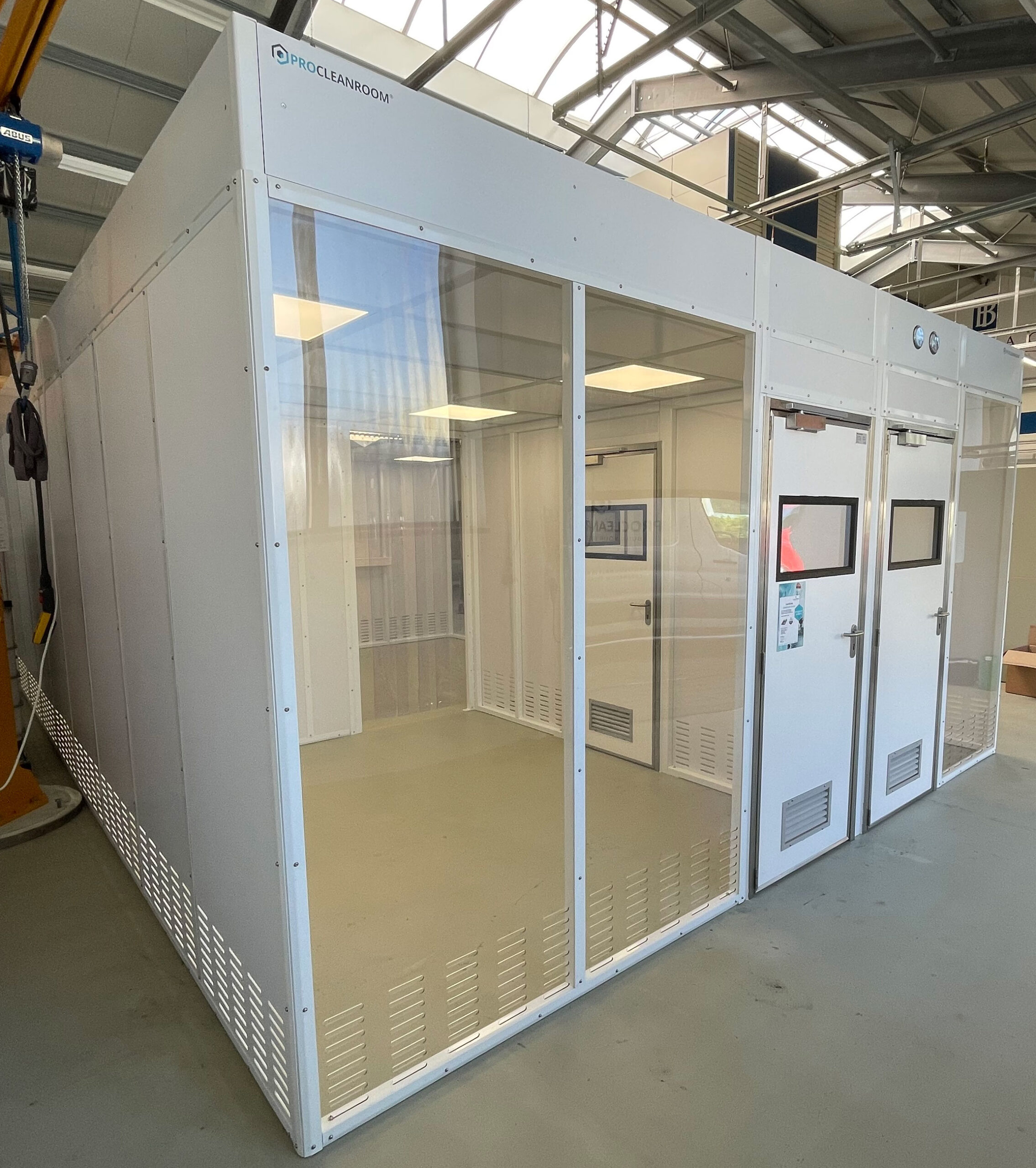

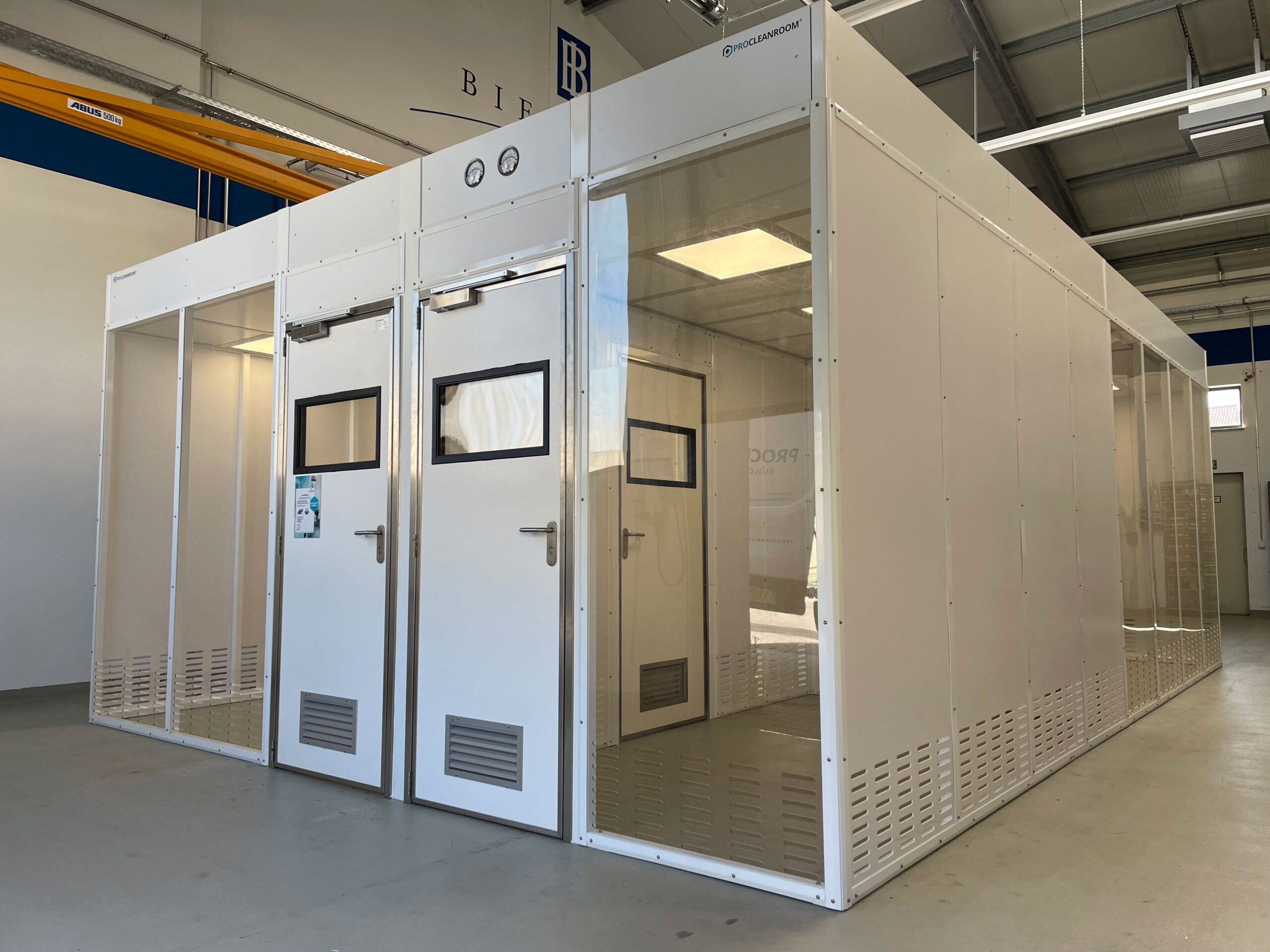

On the premises of Biersack our engineers relocated a 35 m2 (7m x 5m x 2.5m int. height), ISO class 7 hardwall cleanroom. Due to the modular design of the hardwall cleanroom, the relocation was very efficient and thanks to the extensive planning and preparation, the entire cleanroom was relocated, cleaned and validated within a few working days.
Full turnkey cleanroom realisation

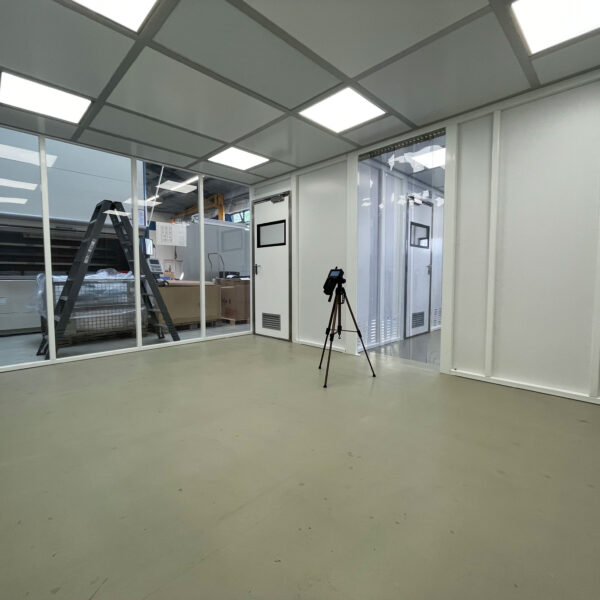

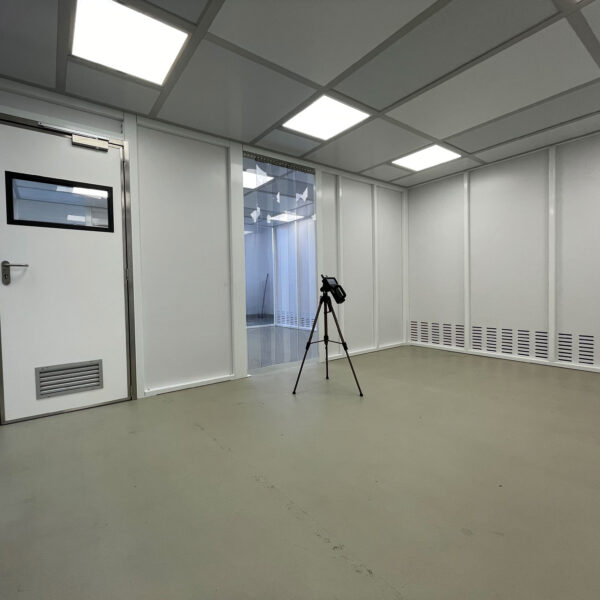

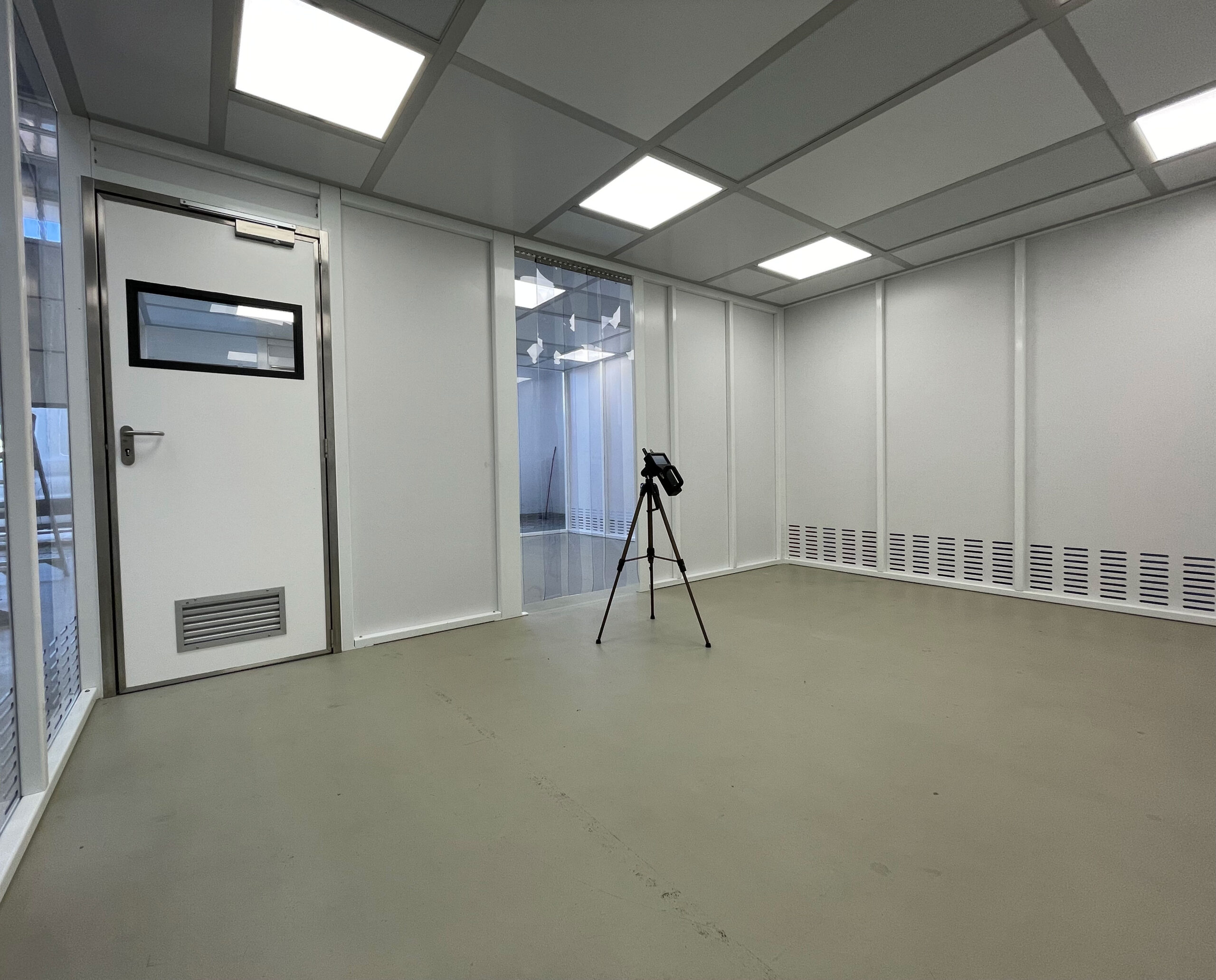

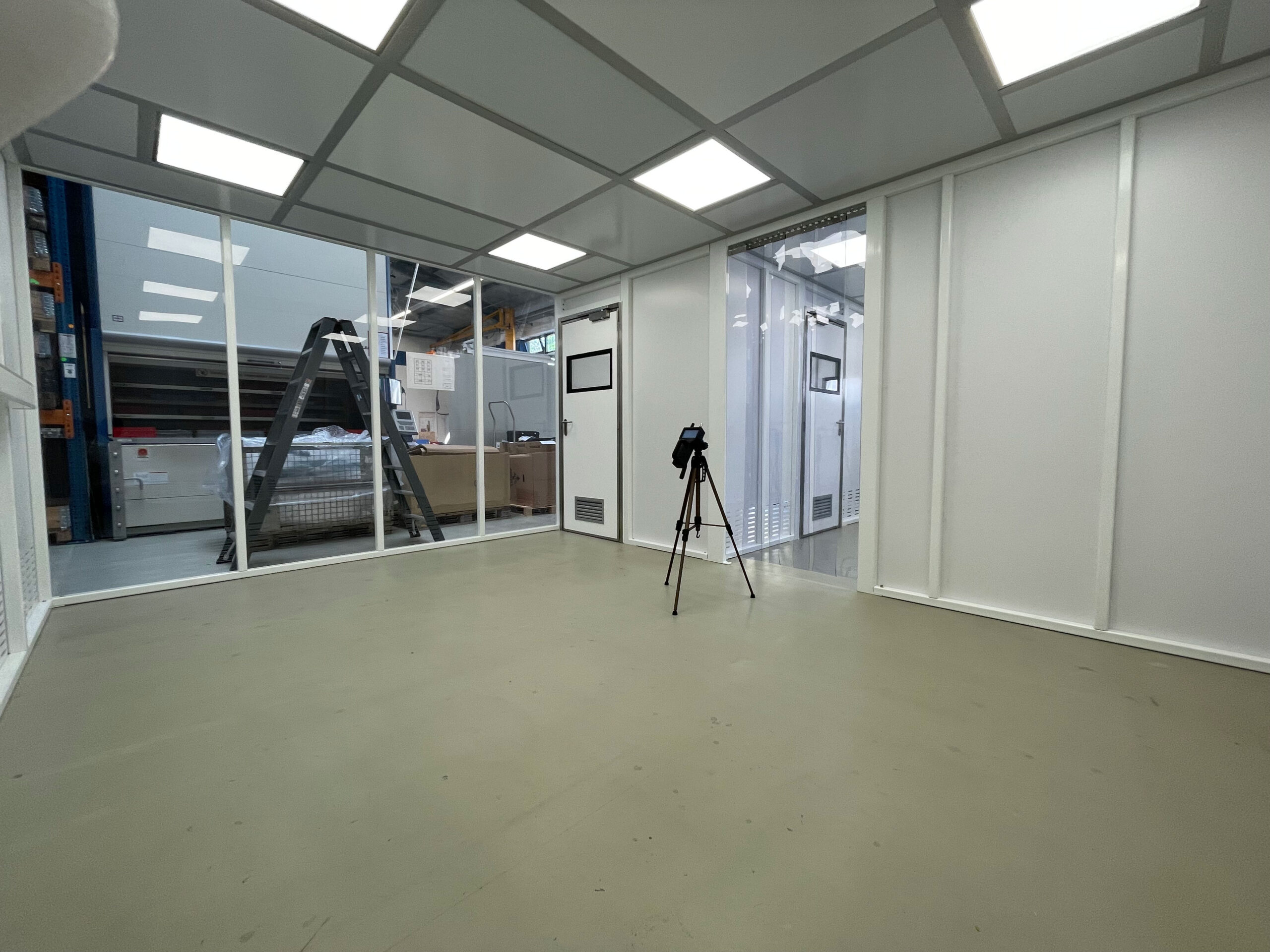

In addition to the full relocation of the hardwall cleanroom, ProCleanroom has also taken care of the complete furnishing and consumables. This includes shelving units, stainless steel tables, cabinets and a step-over-bench. To continuously monitor the cleanliness in the cleanroom, ProCleanroom has supplied a particle counter and UV inspection lamps.
Hardwall cleanroom specifications
Hardwall cleanrooms provide a structure with a clear definition by the durable, impact-resistant partition. On the robust steel or stainless steel frame, transparent or white opaque wall panels are mounted. The panels form a fixed partition surrounding the sterile space. The smooth finish of this hardwall system makes it an interesting option for classified cleanrooms (ISO class 4 to 9). This hardwall cleanroom is designed for the customer specific process and has the following specifications:

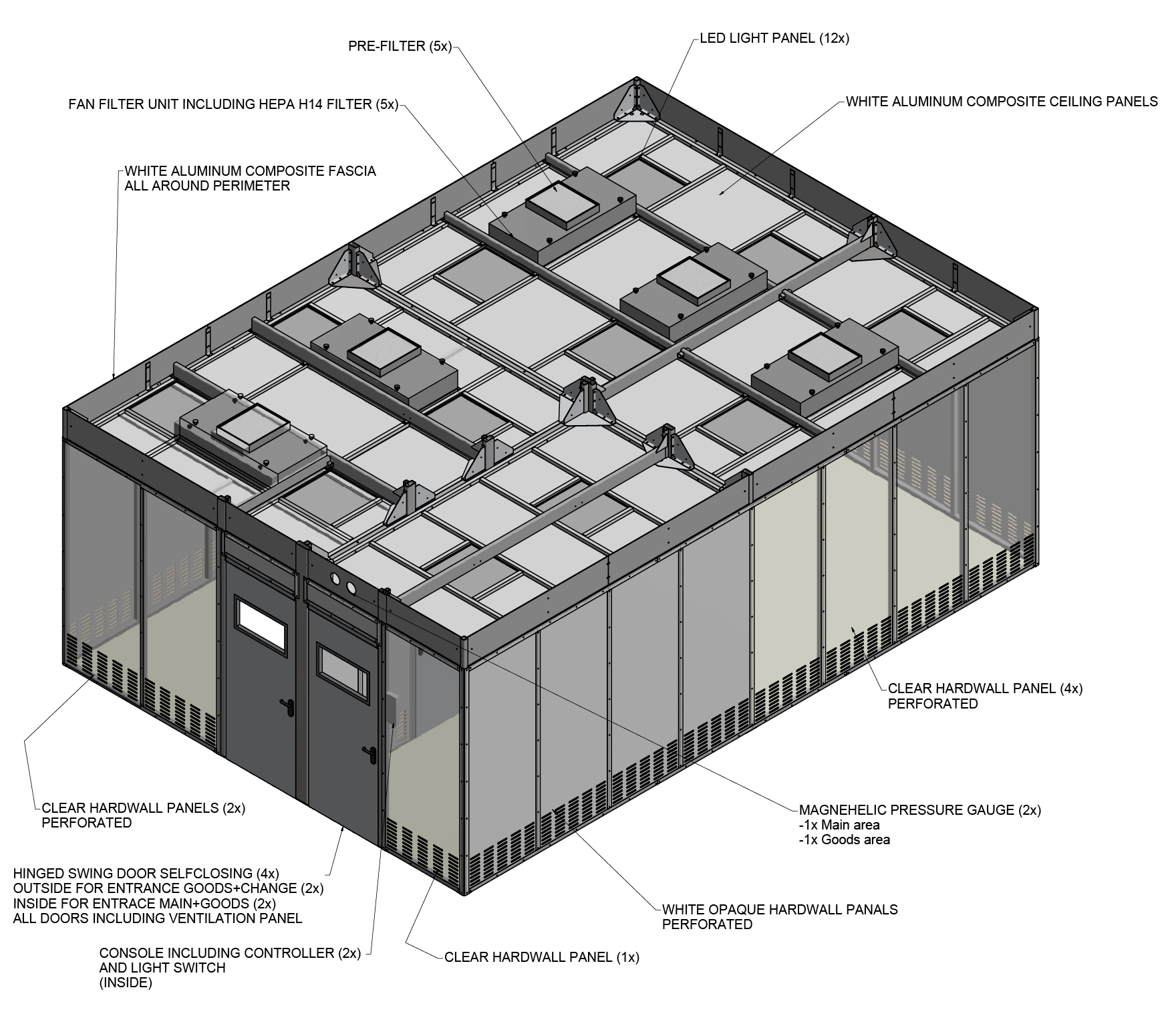

Technical cleanroom specifications:
-
- ISO class 7 (ISO 14644-part 1)
- Dimensions: approx. 35 m2 (7m x 5m) x 2.5m int. height
- Approx. 60 air changes per hour
- 5 no. H14 HEPA fan filter units
- Integrated LED panels for optimal lighting
- Self closing doors
- Self supporting mild steel frame
Cleanroom appearance:
-
- Clear wall panels
- White opaque wall panels
- Fully flush ceiling and fascia boarding
- Gowning and goods area
- Cleanroom fully furnished with stainless steel tables, lockers and stepover bench
The hardwall cleanrooms by ProCleanroom:
Hardwall cleanrooms from procleanroom distinguish themselves with a very efficient and functional design. As a result, they have the lowest operating costs with comparable cleanrooms and a clean design with the support structure and technology concealed behind covering.
